Ranatec introduces first-to-market USB 3.2 Feedthru Filter featuring benchmark 20 Gbps data and 100 W power

2022-01-27

Gothenburg, Sweden, January 27, 2022 — Ranatec, a part of the Qamcom group and supplier of specialized test and measurement equipment for RF and microwave applications, today introduced the brand new innovative  Ranatec RI 4199 USB 3.2 Feedthru Filter with USB-C connector. Providing benchmark SuperSpeed 20 Gbps, the pinnacle new panel mountable USB 3.2 Gen 2×2 Feedthru Filter is first of its kind on the global market. In terms of charging the RI 4199 is designed for a massive 100 W charging power. The company has already received its first order for the product.

The new feedthru filter is primarily designed to fit in Ranatec’s RF Shield Boxes and can be used separately.

Magnus Kilian - CEO | Ranatec AB– “The RI 4199 is a world-first, innovative high-performance USB 3.2 feedthru filter for all types of applications where USB signals need to be fed through a shielded wall”, says Magnus Kilian, CEO at Ranatec.

– “The significant advantage for electronics manufacturers is the capability of transferring both high data rates and high charging power.”

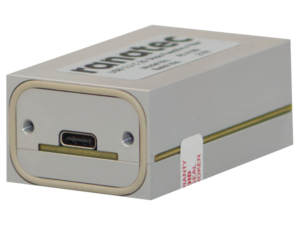

RI 4199 USB 3.2 C 20 Gbps Feedthru Filter | Ranatec

APPLICATION

Primarily designed to fit Ranatec’s shield boxes. Can also be used separately.

FEATURES

  • USB-C connector
  • USB 3.2 Gen 2×2, 20 Gbps
  • 5A, 20V, 100 W charging
  • Panel mountable

SPECIFICATION
Connector front: USB-C jack

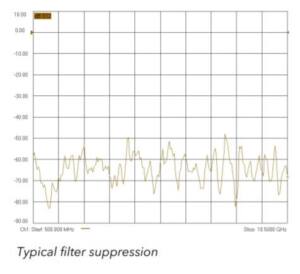

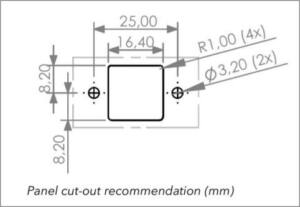

Typical filter suppression | RanatecPanel cut-out recommendation | RanatecConnector back: USB-C jack
Material: Aluminium
Dimensions: 36x62x24 mm
Weight: 90g

ELECTRICAL INTERFACES
The physical connectors are located at each end. The filter is reciprocal, which means the mounting direction can be either way.

MECHANICAL INTERFACES
The RI 4199 is prepared for panel mounting with two threaded M3 screw holes. It is delivered with an EMI/RFI shielding gasket for simple and reliable mounting.

Ranatec quality assurance

Ranatec is ISO9001:2015 certified and offers specialist services within eight defined domains to a global customer base including the world’s leading electronics manufacturers.

About Ranatec

A part of the Qamcom Group, Ranatec is progressive creator of niche test and measurement equipment for the most demanding RF and microwave applications. Together with our clients and partners, we cultivate advancement within signal management to test, measure, filter, or block signals. Based on a ccommitment to constant development and improvement, we aim to make our clients and their products better through inventive solutions for design verification, product certification, production testing and expert trouble shooting.

Partnering with leading global brands, Ranatec products are created to provide the newest advancements in test design and satisfy the highest demands for performance and quality. Our global family of customers includes electronics manufacturers and test labs within cellular infrastructure, mobile phone and radar system industries. Off-the-shelf or full customization, Ranatec offers innovative solutions for Wireless Test Automation, RF/EMC Shielding, and Radar Testing. ISO9001:2015 certified, Ranatec is compliant with the most stringent ISO requirements. Visit us at ranatec.com and follow our latest news on LinkedIn and Twitter.
