Ranatec introduces next generation AC Feedthru Filters with 10 Amp rated current

2024-05-08

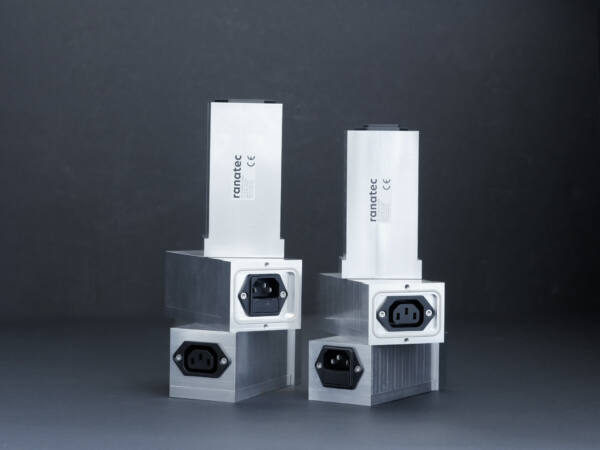

Gothenburg, Sweden, May 8, 2024 — Ranatec, a part of Qamcom Group and progressive creator of test and measurement equipment for RF and microwave applications, announced today its next generation, upgraded panel mountable AC power feedthru filters.  Addressing the needs of an evolving electronics market, the upgraded RI 4205 and RI 4206 110/230 VAC Feedthru filters provide a milestone 10 Amp rated current. Designed to fit in Ranatec’s RF Shield Boxes, both Feedthru Filters can also be used separately.

The latest Ranatec innovations empowering electronics manufacturers to perform the enhanced testing for creating market leading products, the next generation filters are valuable tools for all types of applications where AC power needs to be fed through a shielded wall.

– “As an example, with shielded rooms, customers will have the ability to test more transmitters and receivers,” says Charlotte Ornstein at Ranatec. “As the power in the AC filter is designed to flow in one direction for safety, we have designed two models for the customer to choose from, based on inside or outside room/enclosure mounting.”

– “As Ranatec continues to innovate and provide the best advancements to support our global network of customer and partners, the enhanced RI 4205 and RI 4206 Feedthru Filters are a valuable addition to our rich portfolio of test products.”

Application: Designed primarily to fit in Ranatec’s RF Shield Boxes, the filters can also be used separately.

Features

  • 110/230 VAC compatible
  • 10 A max
  • 70 dB filter suppression at 10 GHz
  • Panel mountable
Specifications

Connector input: C14 male

Connector output: C13 female

Material (housing): Aluminum

Operating voltage 110/230 VAC

Rated current 10 A

CE Compliant

Mechanical Interfaces
Prepared for panel mounting with two threaded M4 screw holes. It is delivered with an EMI/RFI shielding gasket for simple and reliable mounting.

Electrical interfaces
The physical connectors are located at each end.



Based on renowned quality and engineering, Ranatec’s competitive portfolio enables customers to test their latest, cutting-edge wireless equipment with superior proficiency – enabling electronics manufacturers to create and secure value-added product offerings and capture a competitive edge and significant share of the global marketplace.

Ranatec AB (www.ranatec.com)

A part of the Qamcom Group, Ranatec is progressive creator within signal conditioning products to test, measure, filter, or block signals. Together with our global and leading clients and partners, we aim to make them and their products better through inventive solutions for design verification, product certification, production testing and expert trouble shooting. We provide the newest advancements in test design and satisfy the highest demands for performance. Off-the-shelf or full customization, Ranatec offers innovative solutions for Wireless Test Automation, RF/EMC Shielding, and Radar Testing. ISO9001:2015 certified, Ranatec is compliant with the most stringent ISO requirements.

In short, we invent to improve. Visit us at ranatec.com and follow our latest news on LinkedIn and Twitter
