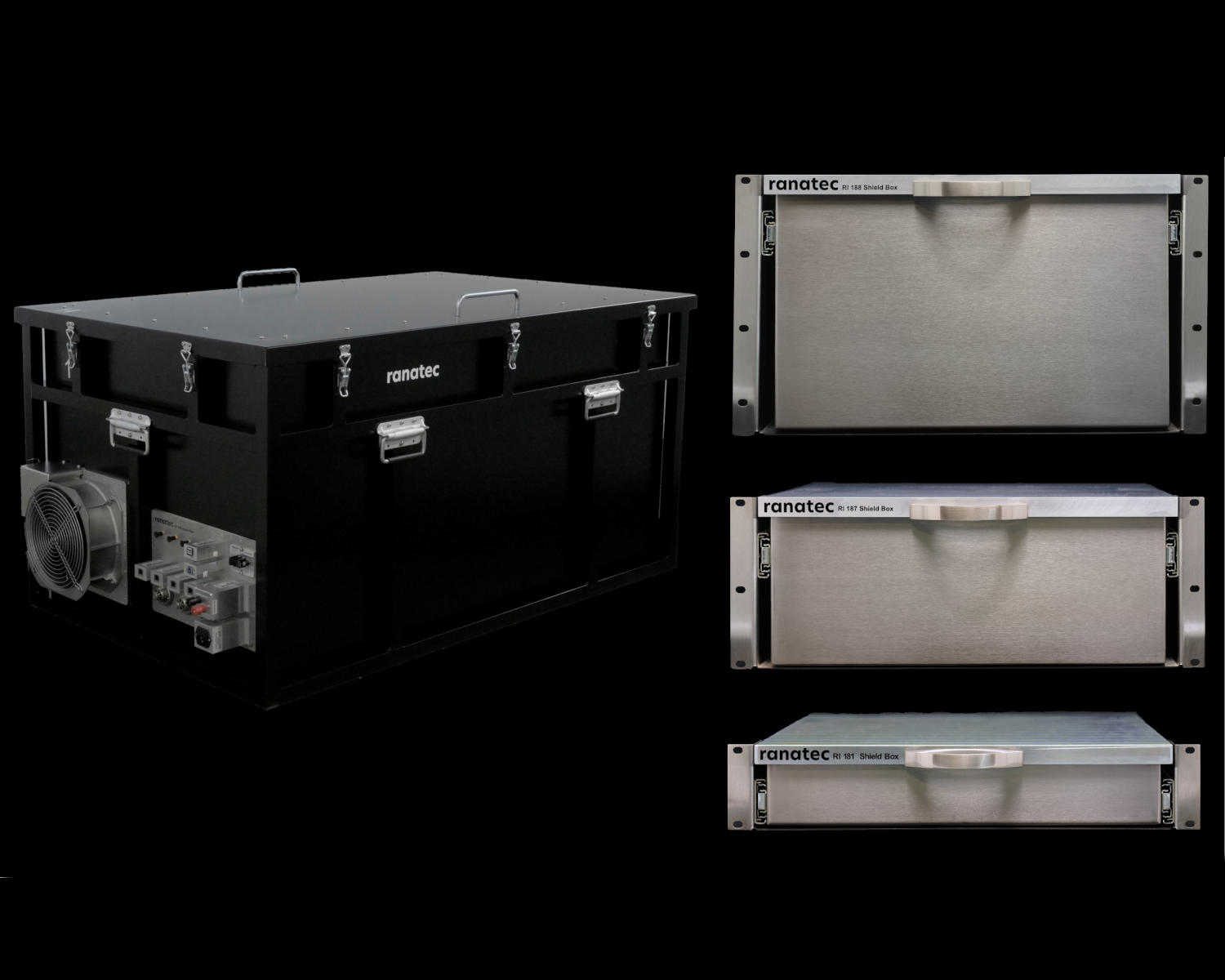

RF Shield Box

Ranatec offers RF Shield Boxes with good RF shielding performance covering all cellular (2G, 3G, 4G, and 5G), WiFi, and Bluetooth frequency bands. The RF Shield Boxes can be equipped with various interface configurations, digital and analog.

Most of the Shield Boxes are 19″ rack-mountable with a convenient eject function and can be easily operated with one hand open-and-close using the front handle. All Ranatec RF boxes are optimized for maximum space efficiency, minimizing the non-usable space in height in the 19” rack. The difference between outer and inner dimensions in height is only 8 mm.

Ranatec offers a variety of shielded AC, LAN, USB, and HDMI Feedthru Filters with good filter suppression performance overall mobile frequency bands to use with RF Shield Boxes.

The Ranatec Shield Boxes can optionally be equipped with active ventilation and internal RF foam coating.

All RF boxes are designed, engineered, manufactured, and tested in Gothenburg, Sweden. All at one site, minimizing the risk for mistakes and maximizing quality.

2U, 19″ rack mountable

Features

  • 60 dB shielding attenuation at 3 GHz
  • Various communication interfaces available
  • 2 U, 19” rack mountable with eject function
  • One hand open-and-close using front handle
  • The lid stays open in any position

Specifications

Attenuation >60 dB at 3 GHz
Freqency range 0.7-6 GHz
Material Stainless steel/Al
Inner dimensions 400 x 300 x 85 mm
Outer dimensions 490 x 490 x 88 mm
Weight (standard config) 8.5 kg

Overview

The Ranatec RI 181 is a high performance shield box for all types of applications where good shielding is neeed. It is especially suited for rack mounted test systems where the device under test is frequently replaced. RI 181 fits into a 19” rack, occupying only 2 U. With a one hand operation, the user can pull it out from the 19” rack and open the lid.

Applications

The RI 181 is designed for high shielding over all cellular mobile frequency bands making it suitable for applications such as:

  • Cellular mobile phone test
  • Basestation transceiver test
  • Cellular network test
  • Wireless semiconductor test
  • WLAN/Bluetooth/ZigBee/WiMax device test

Electrical Interfaces

All electrical interfaces are located on a replaceable interface plate at the rear of the RI 181. The interface plate can be equipped with various I/O interfaces and connectors. Please see further details under the ordering column.

Ordering

  • RI 181 Shield Box
  • RI 4182 LAN 1 Gbps Feedthru Filter
  • RI 4184 Dual USB 2.0 Feedthru Filter
  • RI 4185 Single USB 2.0 Feedthru Filter
  • RI 4192 USB 3.0 Feedthru Filter
  • RI 4193 HDMI Feedthru Filter
  • RI 4194 LAN 10 Gbps Feedthru Filter
    Up to 8 pcs per box
  • RI 181-11 Internal shielding wall
    Up to 7 pcs per box
  • RI 181-13 DC Feedthru EMI Filter
    Up to 8 pairs per box
  • RI 181-14 SMA(f)/(f) Bulkhead Connector
    Up to 16 pcs per box
  • Option RF Absorption Foam inside box

4U, 19″ rack mountable

Features

  • 60 dB shielding attenuation at 3 GHz
  • Various communication interfaces available
  • 4 U, 19” rack mountable with eject function
  • User can easily change interfaces at the rear
  • One hand open-and-close using front handle
  • The lid stays open in any position

Specifications

Attenuation >60 dB at 3 GHz
Inner dimensions 390x290x150 mm
Outer dimensions 490x490x177 mm
Weight (standard) 12 kg
Material Stainless steel/Al

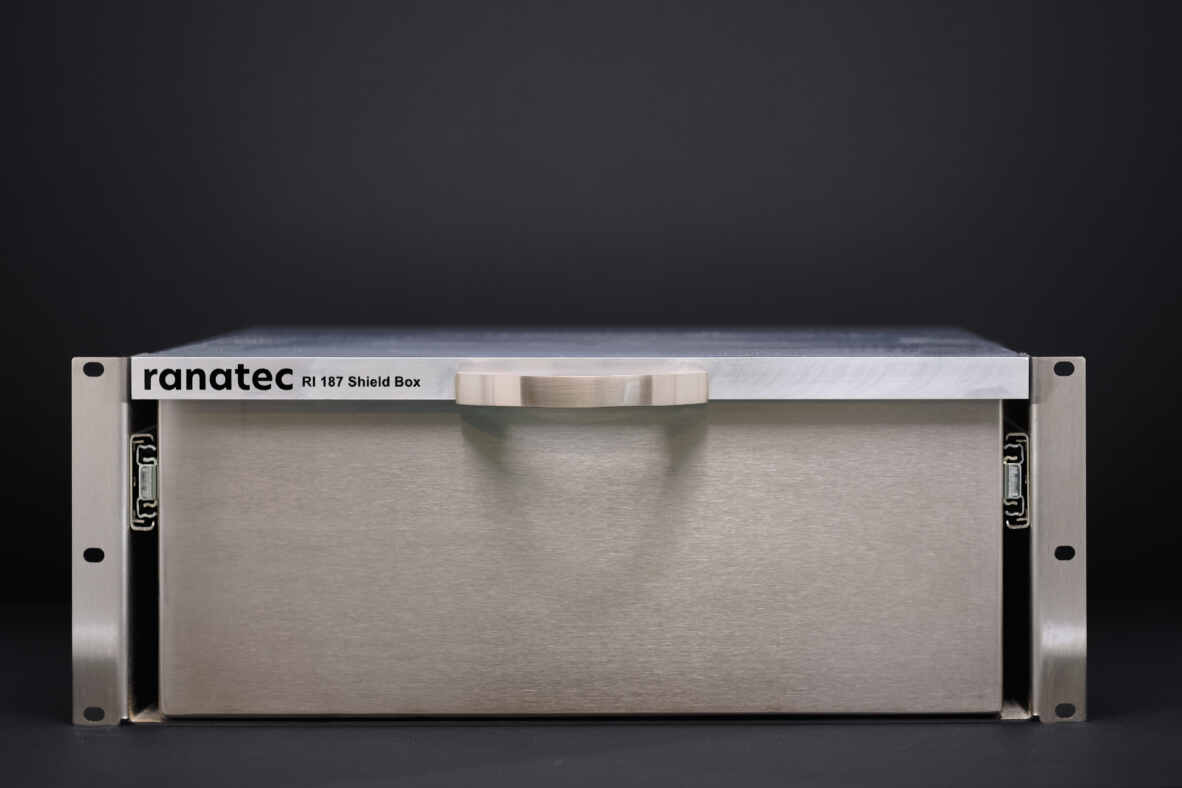

Overview

The RI 187 is an RF shield box for all types of applications where good shielding is needed. It is especially suited for rack mounted test systems where the device under test is frequently replaced. RI 187 fits into a 19” rack, occupying only 4 U. With a one hand operation, the user can pull it out from the 19” rack and open the lid.

Application

The RI 187 is designed for high shielding over all cellular mobile frequency bands making it suitable for applications such as:

  • Cellular mobile phone test
  • Basestation transceiver test
  • Cellular network test
  • Wireless semiconductor test
  • WLAN/Bluetooth/ZigBee/WiMax device test

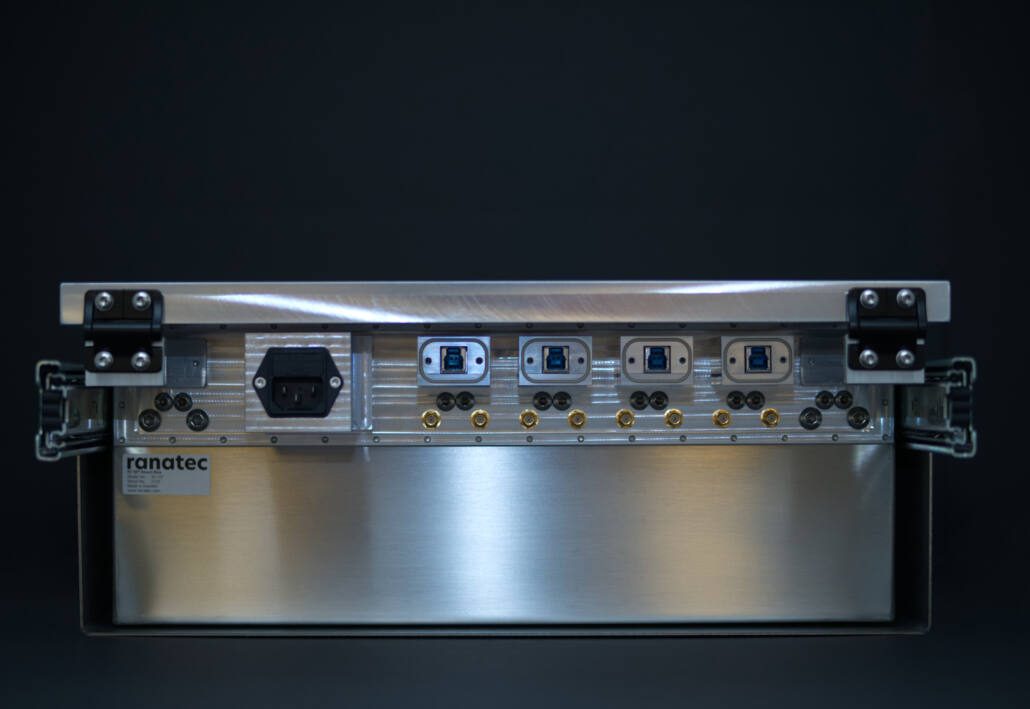

Electrical Interfaces

All electrical interfaces are located on a replaceable interface plate at the rear of the RI 187. The interface plate can be equipped with various I/O interfaces and connectors. For further details please see the ordering column.

Ordering

  • RI 187 Shield Box
  • RI 4182 LAN 1 Gbps Feedthru Filter
  • RI 4184 Dual USB 2.0 Feedthru Filter
  • RI 4185 Single USB 2.0 Feedthru Filter
  • RI 4192 USB 3.0 Feedthru Filter
  • RI 4193 HDMI Feedthru Filter
  • RI 4194 LAN 10 Gbps Feedthru Filter
    Up to 6 pcs per box
  • RI 4195 110/230 VAC Feedthru Filter
    Up to 1 pc per box
  • RI 181-13 DC Feedthru EMI Filter
    Up to 6 pairs per box
  • RI 181-14 SMA(f)/(f) Bulkhead Connector
    Up to 12 pcs per box
  • Option RF Absorption Foam inside box

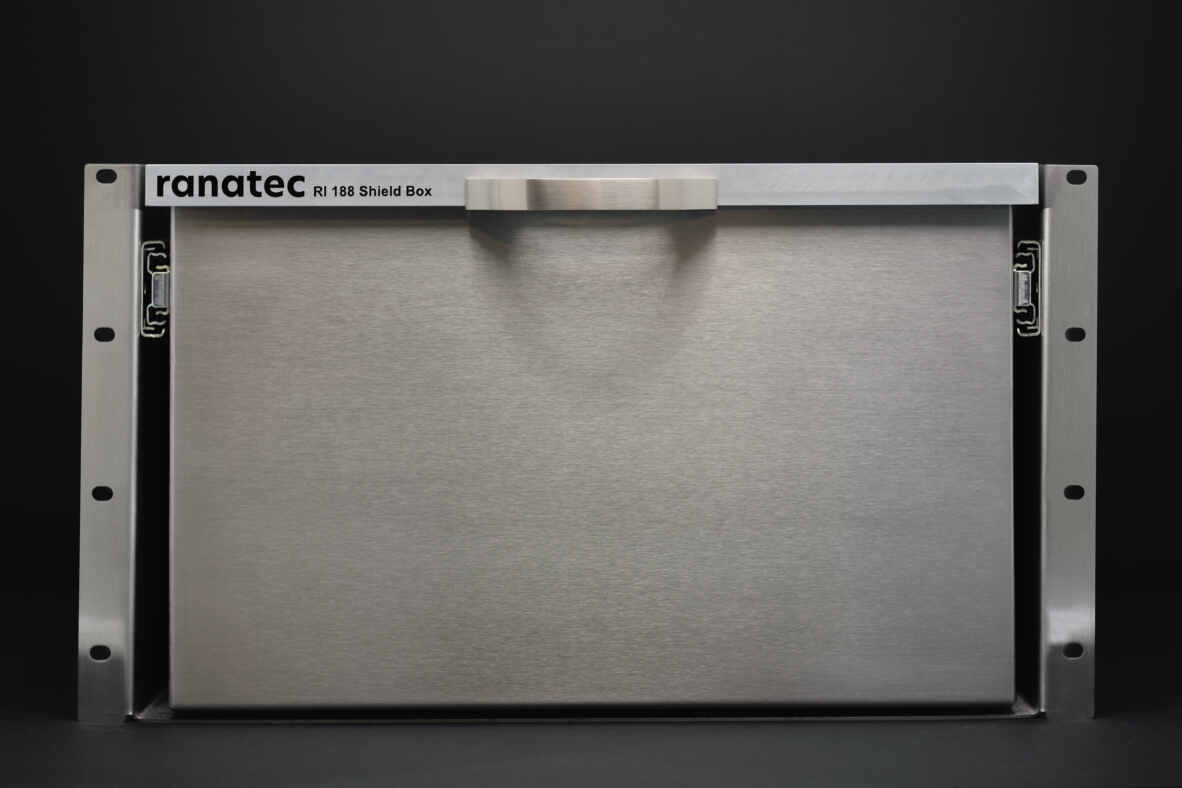

6U, 19″ rack mountable

Features

  • 60 dB shielding attenuation at 3 GHz
  • Various communication interfaces available
  • 6 U, 19” rack mountable with eject function
  • User can easily change interfaces at the rear
  • One hand open-and-close using front handle
  • The lid stays open in any position

Specifications

Attenuation > 60dB at 3 GHz
Inner dimensions 390x290x250 mm
Outer dimensions 490x490x266 mm
Weight (standard) 13.2 kg
Material Stainless steel/Al

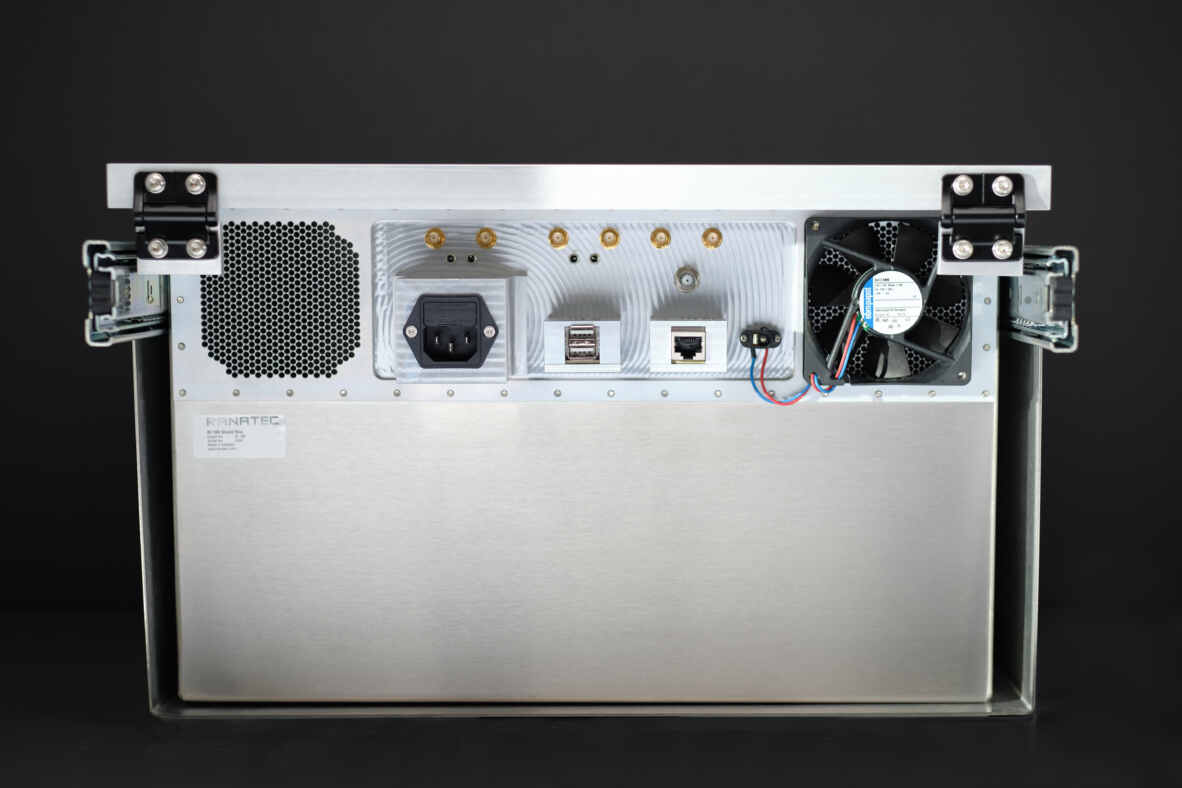

Electrical Interfaces

All electrical interfaces are located on a replaceable interface plate at the rear of the RI 188. The interface plate can be equipped with various I/O interfaces and connectors. Please see further details under the ordering column.

Application

The RI 188 is designed for high shielding over all cellular mobile frequency bands making it suitable for applications such as:

  • Cellular mobile phone test
  • Basestation transceiver test
  • Cellular network test
  • Wireless semiconductor test
  • WLAN/Bluetooth/ZigBee/WiMax device test
RF Shield Boxes for 2G, 3G, 4G and 5G performance enhancement | Ranatec

Ordering

  • RI 188 Shield Box
  • RI 4182 LAN 1 Gbps Feedthru Filter
  • RI 4184 Dual USB 2.0 Feedthru Filter
  • RI 4185 Single USB 2.0 Feedthru Filter
  • RI 4192 USB 3.0 Feedthru Filter
  • RI 4193 HDMI Feedthru Filter
  • RI 4194 LAN 10 Gbps Feedthru Filter
    Up to 2 pcs per box
  • RI 4195 110/230 VAC Feedthru Filter
    Up to 1 pc per box
  • RI 181-13 DC Feedthru EMI Filter
    Up to 2 pairs per box
  • RI 181-14 SMA(f)/(f) Bulkhead Connector
    Up to 6 pcs per box
  • f-type 75 Ohm Connector
    Up to 1 pc per box
  • Option RF Absorption Foam inside box

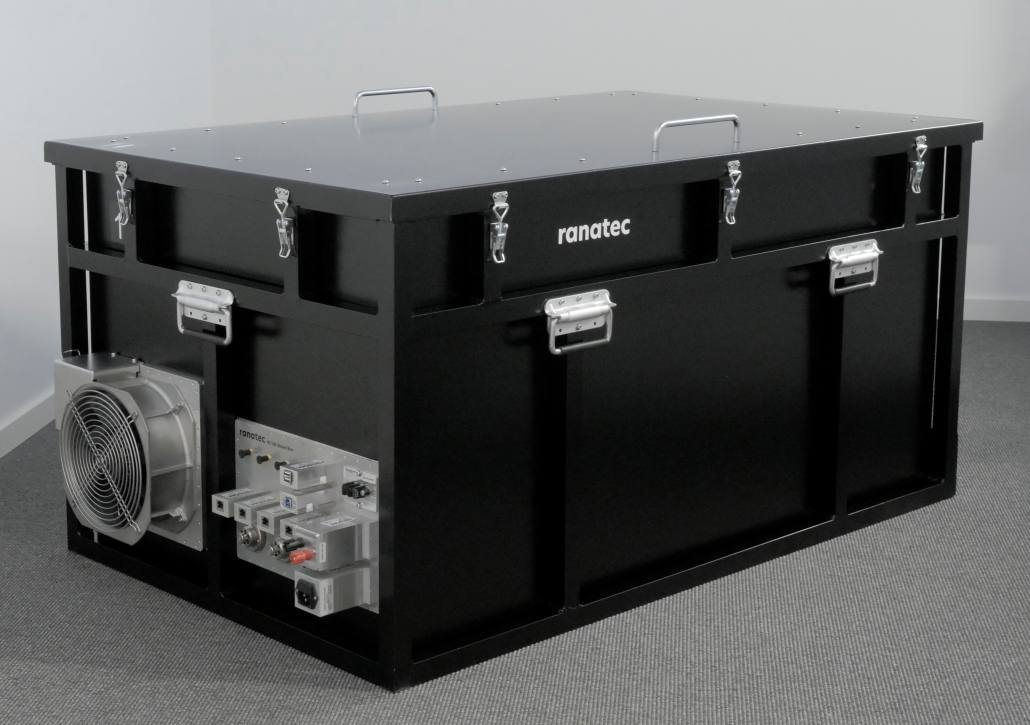

1.2 x 0.7 x 0.6 meter

Features

  • 70 dB shielding attenuation at 1-10 GHz
  • Ventilation designed for 2 kW internal heat

Specifications

Attenuation 70 dB at 1-10 GHz
Inner dimensions 1.2 x 0.7 x 0.6 m
Outer dimensions 1.3 x 0.8 x 0.7 m
Weight (standard) 32.2 kg
Material Aluminum

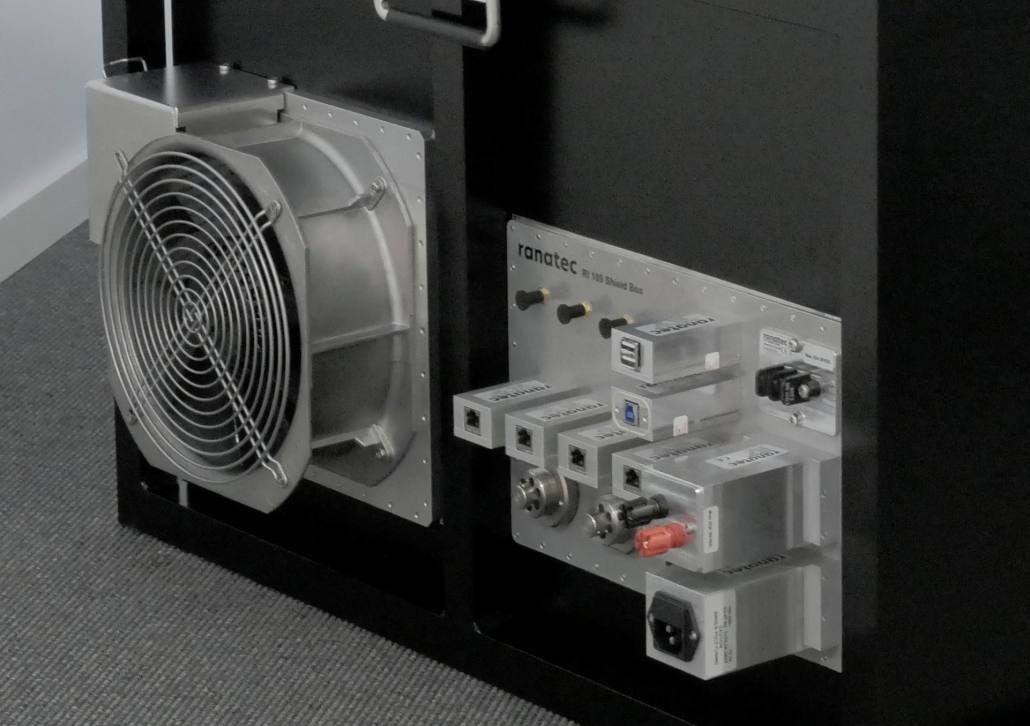

Electrical Interfaces

All electrical interfaces are located on a replaceable interface plate. The interface plate can be equipped with various I/O interfaces and connectors. Please see further details under the ordering column.

Application

The RI 189 is designed for shielding over all cellular mobile frequency bands, 1-10 GHz making it suitable for applications such as:

  • Cellular mobile phone test
  • High power products
  • Base station test
  • Cellular network test
  • Wireless semiconductor test
  • WLAN/Bluetooth/Zigbee/WiMax device test
RI 189 RF Shield Box | Ranatec
RI 189 RF Shield Box | Ranatec

Ordering

  • RI 189 Shield Box
  • RI 4182 LAN 1 Gbps Feedthru Filter
  • RI 4184 Dual USB 2.0 Feedthru Filter
  • RI 4185 Single USB 2.0 Feedthru Filter
  • RI 4192 USB 3.0 Feedthru Filter
  • RI 4193 HDMI Feedthru Filter
  • RI 4194 LAN 10 Gbps Feedthru Filter
    Up to 6 pcs per box
  • RI 4195 110/230 VAC Feedthru Filter
  • RI 4197 DC Filter with Banana Connectors
    Up to 2 pcs per box
  • RI 4196 Optical Fiber Feedthru
    Up to 2 pcs per box
  • RI 4198 DC Filtered Terminal Block, 2 pos
    Up to 2 pcs per box
  • RI 181-14 SMA(f) Bulkhead Connector
    Up to 4 pcs per box
  • Option RF Absorption Foam inside box

Customized RF Shield Box

Ranatec is one of the leading RF shield box manufacturers on the market, offering fully customizable RF shield boxes you can design according to your needs and demands.

Customized RF Shield Box Price

Our custom RF Shield boxes are built on a scalable and flexible platform, both in regards to R&D and manufacturing, which enables fully custom solutions at a very competitive good price.

The RF shield box price of a custom build can vary greatly depending on several different factors including:

  • Shape and size of the box
  • Shielding attributes of the box
  • Construction material used for the box
  • Adjustments for power outlets (AC, DC)
  • Adjustments for ventilation features (vents, fans)
  • Adjustments for interface connectors (LAN, USB, TNC)

Fill the form below or contact us with custom requirements for RF Shield Box

FAQ

“RF shield boxes are used within a wide variety of areas for applications such as:

– Cellular mobile phone test
– High power products
– Base station test
– Cellular network test
– Wireless semiconductor test
– WLAN/Bluetooth/Zigbee/WiMax device test”

The purpose of RF shielding is to block radio frequencies from interfering with a product’s/device’s performance and functionality during performance/reliability testing of wireless, cellular and IoT devices. RF shielding is necessary to create an isolated test environment where both precise test outputs and test repeatability are possible.
RF shield boxes create an isolated testing environment that is used to guarantee precise test outputs and the possibility of test repeatability.
