Forensic Box

The Ranatec high performance Forensic RF Shield Box is designed for protection and analysis of devices that incudes radio transceivers and transmitters. The box is typically used by law enforcement and forensic investigators. The box blocks all wireless signals like WiFi, Bluetooth, 2G, 3G, LTE and 5G.

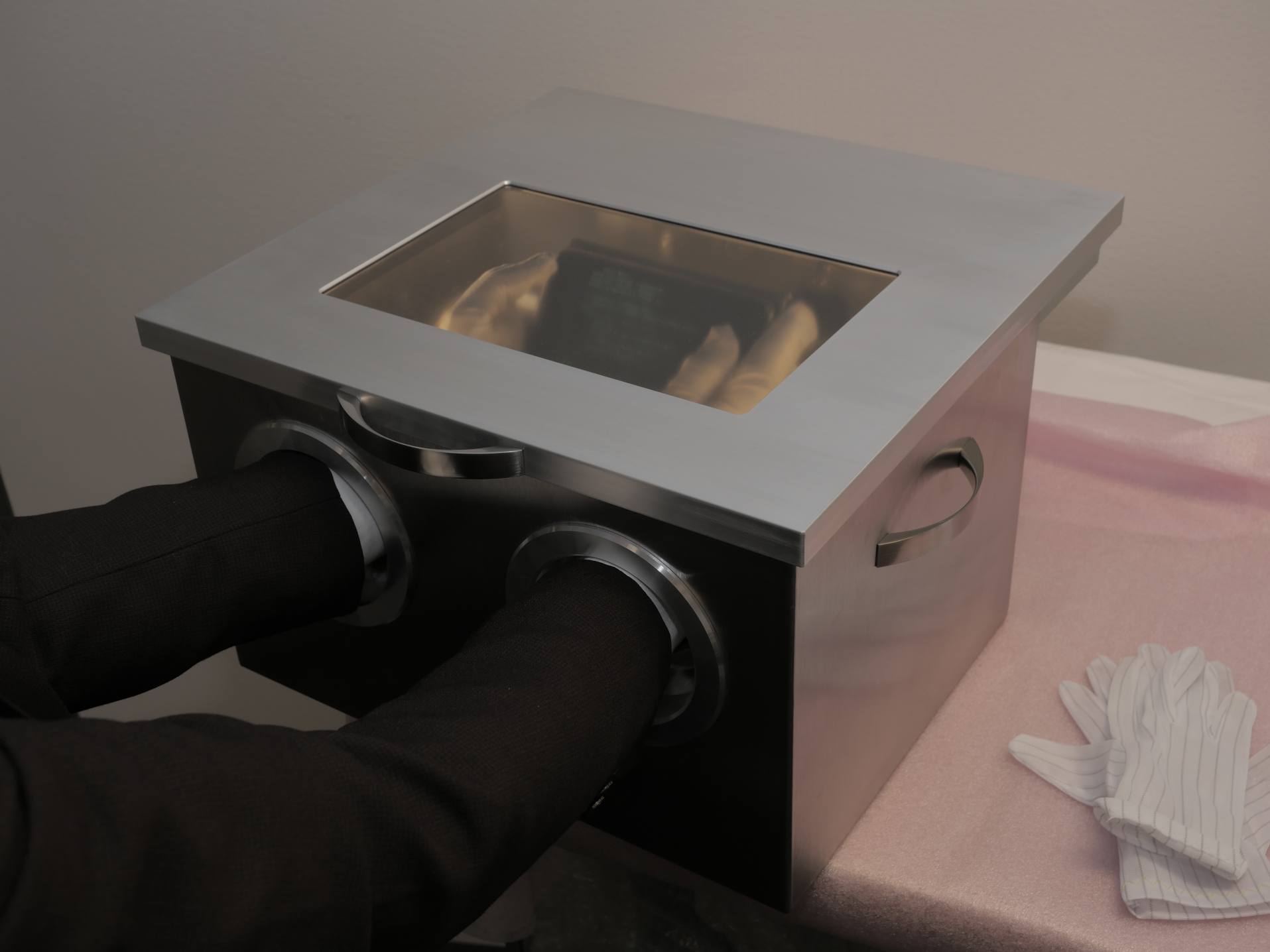

The Ranatec forensic box is equipped with RF shielded gloves and shielded window. For analysis and charging, the box can include AC, USB, LAN, and HDMI interfaces. In addition it can be equipped with ventilation and fan. This makes it possible to analyse devices that generates significant heat.

Overview

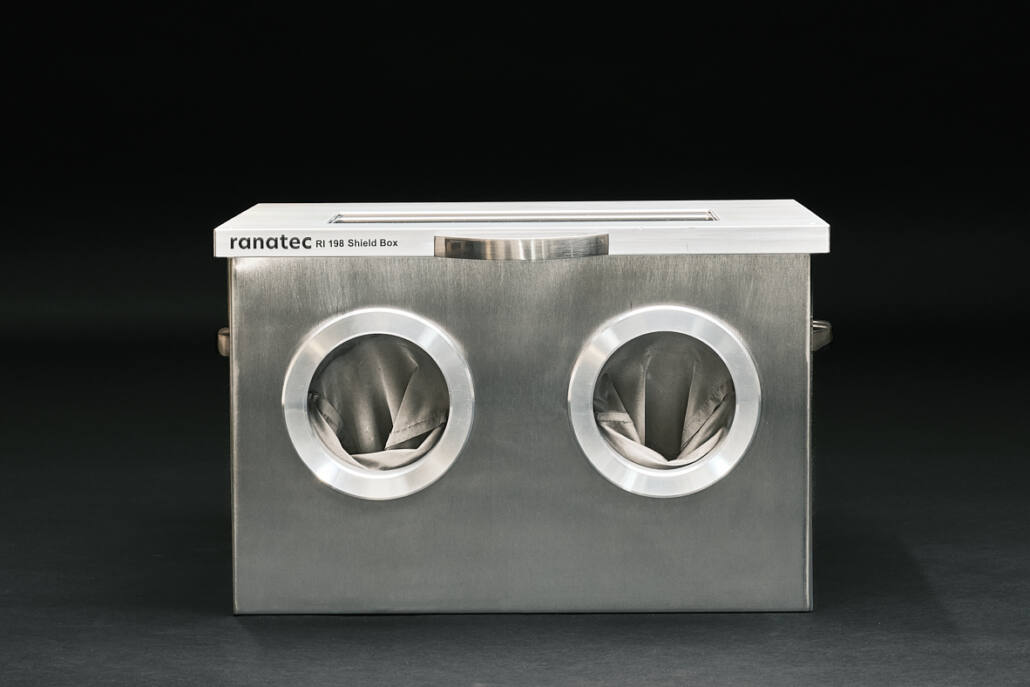

The RI 198 is an RF Forensic box, designed for law enforcement, IT forensics and crime investigators. Using the RI 198 you can analyse signal jammers or protect wireless devices that have been collected at a crime scene. The box is portable and easy to use. The lid stays open at any angle and stays closed without any additional locking device.

Applications

The RI 198 is designed for high shielding over all cellular mobile frequency bands making it suitable for applications such as:

  • Protection of wireless devices from being hacked
  • Storage of wireless devices (evidences) collected at crime scenes
  • Analysis of signal jammers

Electrical Interfaces

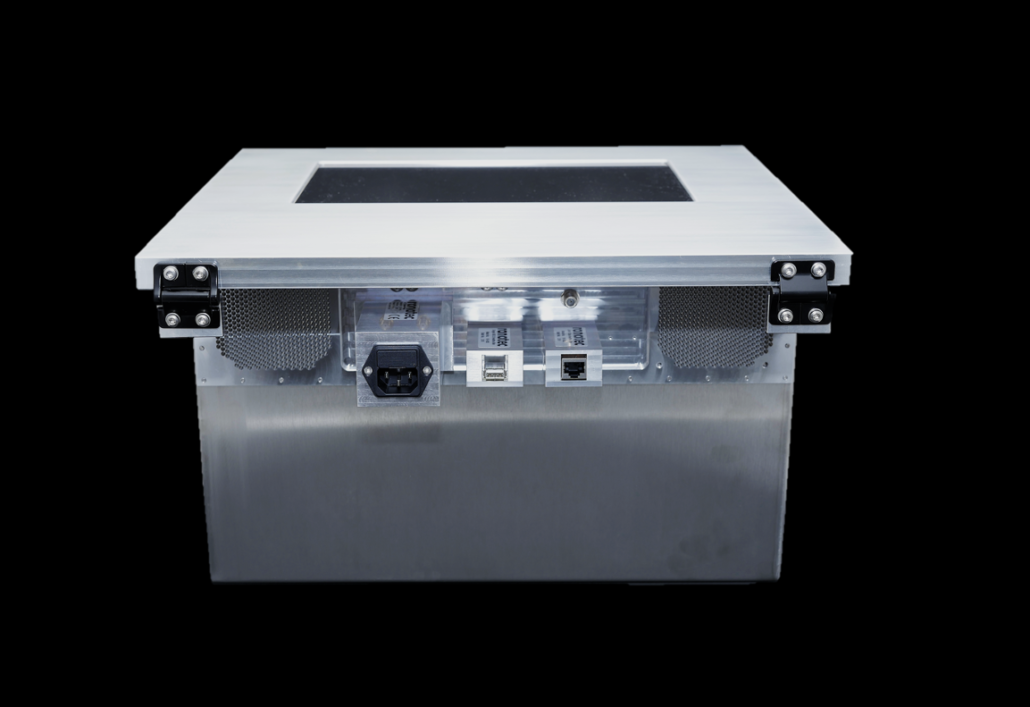

All electrical interfaces are located on a replaceable interface plate at the rear of the box. The interface plate can be equipped with the following:

  • LAN (Ethernet) 1 Gbps Feedthru Filter
  • LAN (Ethernet) 10 Gbps Feedthru Filter
  • USB 2.0 480 Mbps Feedthru Filter
  • USB 3.0 Feedthru Filter
  • HDMI Feedthru Filter
  • 110/230 VAC Feedthru Filter
  • EMI Filtered DC Voltage Feedthru
  • SMA(f)/SMA(f) Bulkhead Connector
  • f-type 75 Ohm Connector
  • Ventilation with fan

Features

  • 50 dB shielding attenuation at 3 GHz
  • User can easily change interfaces at the rear
  • One hand open-and-close using front handle
  • The lid stays open in any position
  • RF-gloves and RF-window
  • LED-light inside the box

Specifications

Attenuation at 3 GHz 50 dB
Inner dimensions 390x290x250 mm
Outer dimensions 460x460x265 mm
Weight (standard) 9,3 kg
Material Stainless steel/Al

Ordering

  • RI 198 Shield Box
  • RI 4182 LAN 1 Gbps feedthru filter
  • RI 4184 Dual USB 2.0 feedthru filter
  • RI 4185 Single USB 2.0 feedthru filter
  • RI 4192 USB 3.0 Feedthru Filter
  • RI 4193 HDMI Feedthru Filter
  • RI 4194 LAN 10 Gbps Feedthru Filter
  • RI 181-13 DC Feedthru EMI Filter
  • RI 181-14 SMA(f)/SMA(f) Bulkhead Connector
  • f-type 50 Ohm Connector
  • Ventilation with fan

FAQ

Forensic RF shielded boxes are suitable for applications such as protecting wireless devices from being hacked, storing wireless devices (evidence) collected at crimes scenes and for analysis of signal jammers.

The Forensic RF shielded box is, as the name suggests, pretty much only used within the forensic industry. It is an RF shield box specifically designed for forensics technicians to be able to perform electronic device interrogations.
